Heynemo Commercial Ice Maker Machine

265 lbs / 24h Yield, 55 lbs Storage Bin, Stainless Steel Undercounter Design, Includes Inline Water Filter, Scoop, and Hoses

Ensure your bar, restaurant, coffee shop, or busy home venue never runs out of fresh ice with the heavy-duty Heynemo Commercial Ice Maker Machine. Custom-engineered for high-volume demands, this commercial-grade undercounter unit produces up to 265 lbs ($120\text{ kg}$) of crystal-clear ice per 24 hours while storing up to 55 lbs ($25\text{ kg}$) in its insulated built-in storage bin.

Housed in a rugged, rust-resistant stainless steel cabinet with an easy-access slanted door, the Heynemo ice maker features a powerful 500W compressor that yields 126 clear ice cubes per rapid 11–20 minute cycle. Designed for both freestanding placement and undercounter cabinet integration, it comes equipped with a smart LCD touch control panel that allows you to easily adjust ice cube thickness, program a 24-hour delayed start timer, and initiate a one-touch automatic self-cleaning cycle.

Key Features & Performance Highlights

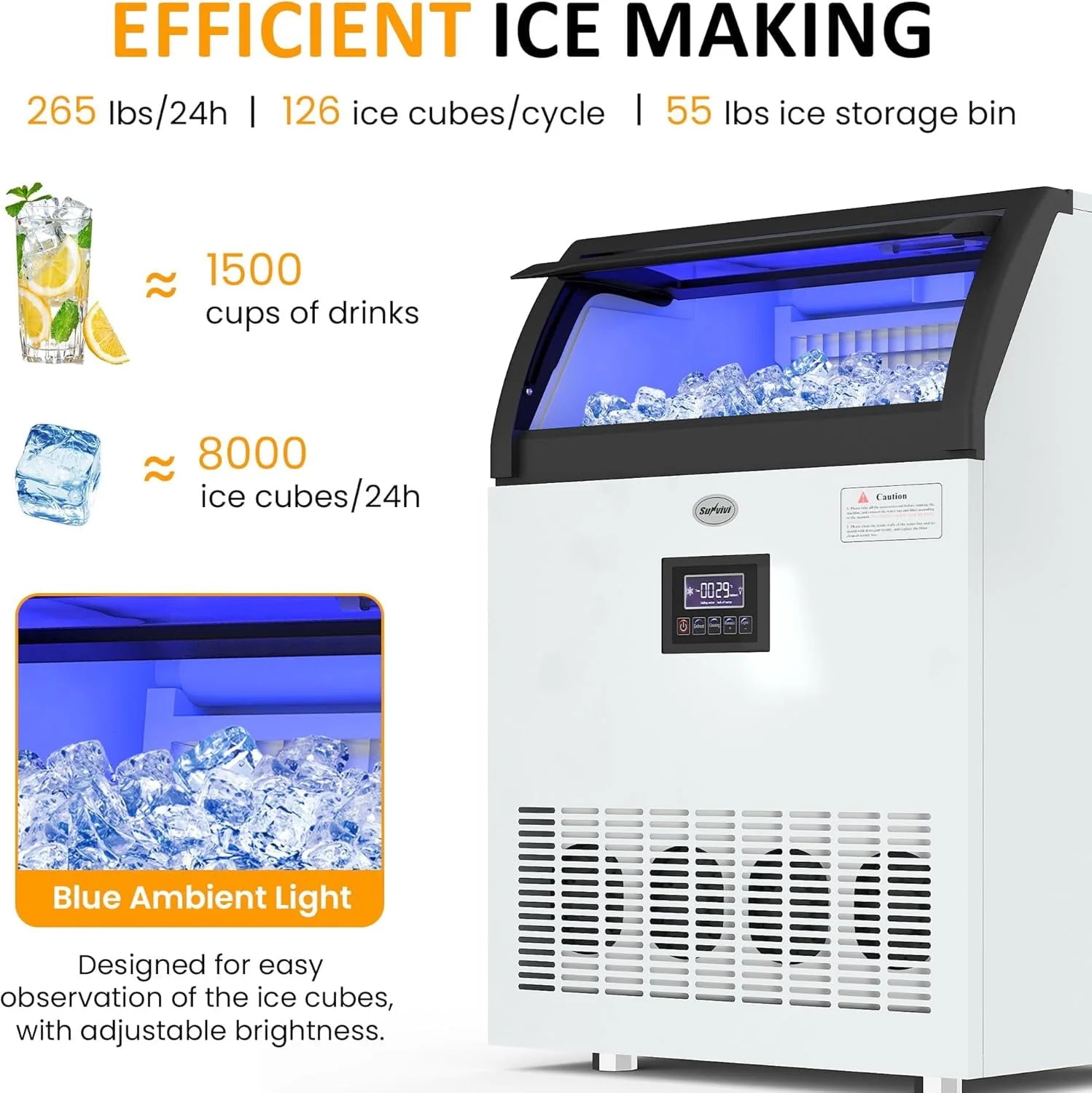

• High-Yield 265 lbs/24h Capacity: Generates up to 265 lbs of clear cube ice daily, producing 126 ice cubes per single cycle in just 11 to 20 minutes.

• 55 lbs Insulated Storage Bin: Features a food-grade, insulated storage bin with an internal blue LED light that keeps up to 55 lbs of ice cold and ready for service.

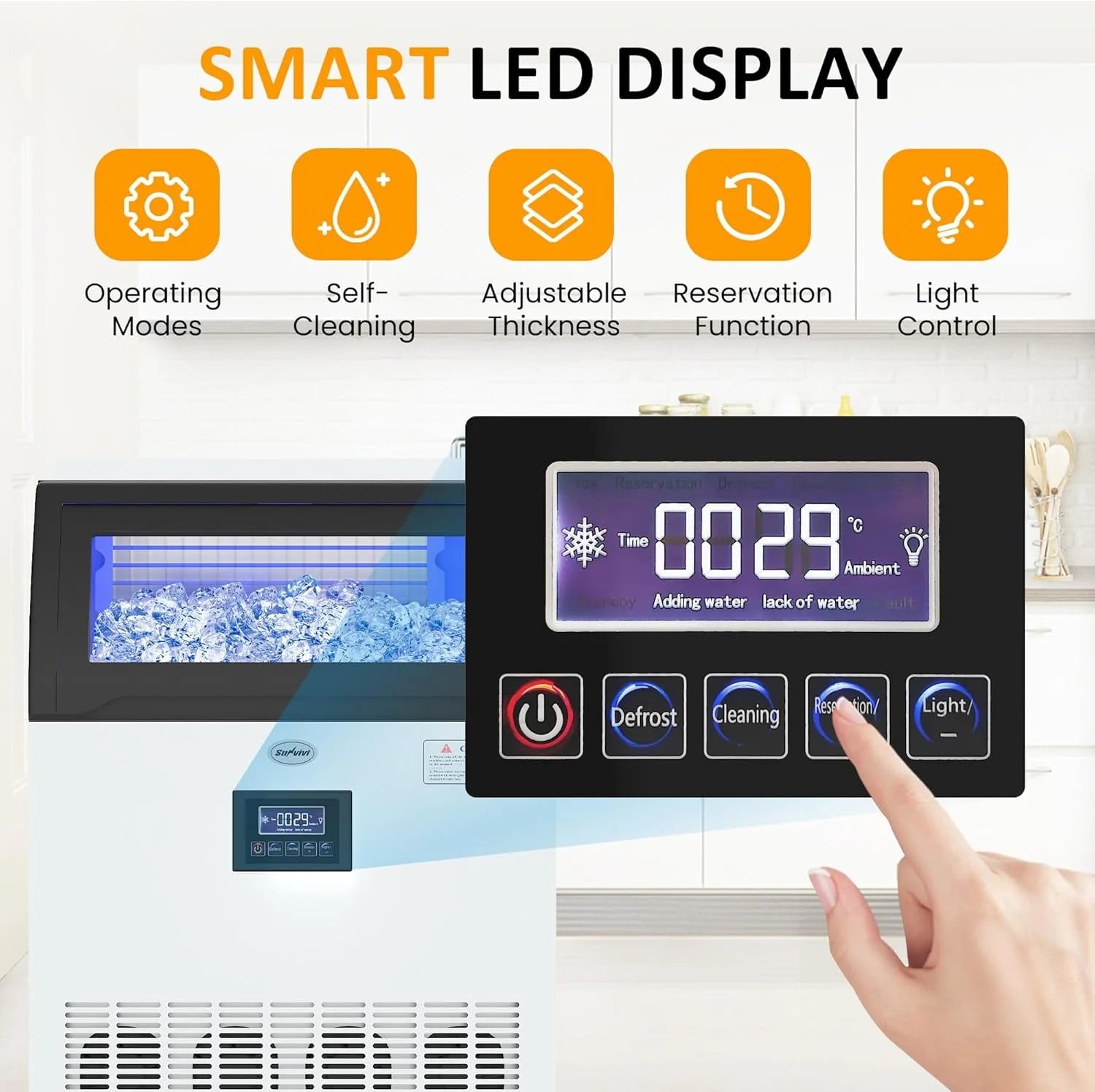

• Smart LCD Control Panel: Easily adjust ice-making cycle duration to customize cube thickness (thin for smoothies, medium for sodas, thick for spirit drinks). Includes a 24-hour reservation timer and real-time status indicators.

• One-Touch Automatic Self-Cleaning: Press the clean button on the digital control interface to run a continuous 20-minute flushing cycle that cleans internal water lines and the evaporator plate.

• Complete Plumbing Accessory Kit: Comes out of the box with an inline water filter system, water inlet supply hose, gravity drainage hose, and an ice scoop.

• Versatile Undercounter & Freestanding Setup: Compact footprint fits under standard commercial bar counters while adjustable feet ensure level positioning on uneven floors.

Technical Specifications Summary

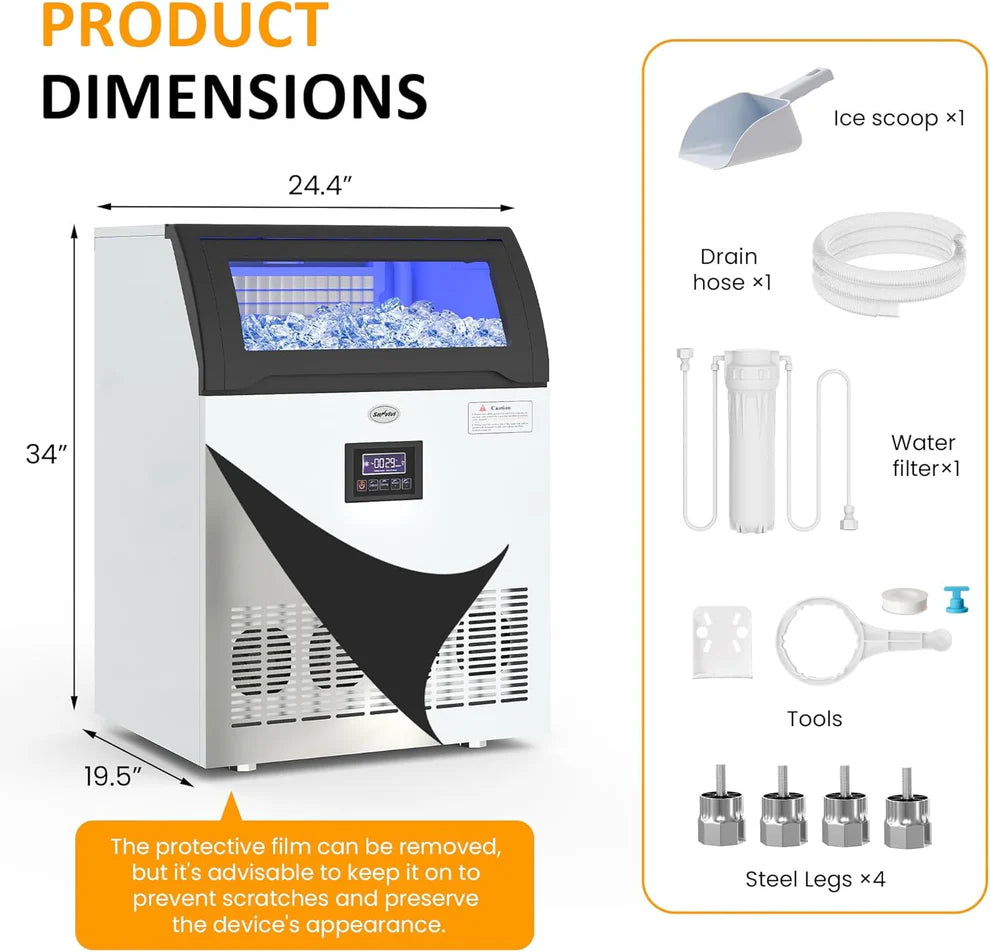

Comprehensive Product Packaging List

• 1 × Heynemo Commercial Ice Maker Machine Unit (with 55 lbs Built-in Storage Bin)

• 1 × Inline Water Filter System with Connection Tubing

• 1 × Water Inlet Supply Line Hose

• 1 × Drain Line Hose (Gravity Drainage)

• 1 × Ice Scoop

• 1 × Installation Accessories Hardware Kit & Leveling Feet

• 1 × User Manual & Plumbing Guide

Critical Field Installation Guidelines

1. Upright Settling Period: Before turning the machine on for the first time, allow the unit to stand vertically upright for at least 24 hours to settle internal refrigerant fluids after transit.

2. Gravity Drainage Requirement: This ice maker utilizes a gravity drainage system. The drain line hose must slope downward toward a floor drain or drain outlet located lower than the machine's base. If draining uphill or over long distances, a separate external condensate drain pump is required.

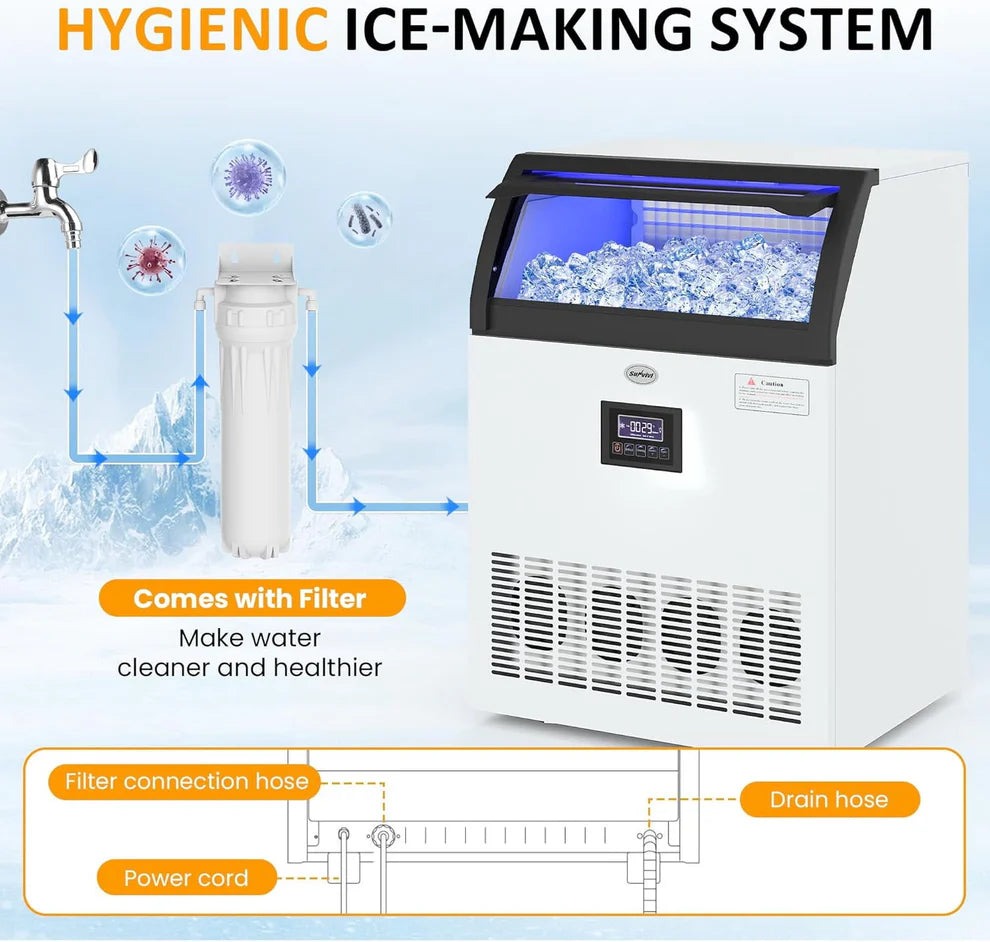

3. Inline Water Filter Setup: Always connect the included inline water filter between your main water supply line and the machine's inlet port. Filtered water prevents mineral scale buildup on the evaporator plate, ensuring consistent ice production and extending compressor life.
